Positive meniscus lenses are designed to minimize spherical aberration and can be used alone to achieve a minimum converging spot, or when combined with another lens to reduce the focal length and thus increase the numerical aperture. When used for converging parallel light, the convex surface of the lens should face towards the light source to minimize spherical aberration.
The center of a negative meniscus lens is thinner than the edge, causing light to diverge, and is designed to minimize spherical aberration. They are often used in conjunction with other lenses to increase the focal length and thus reduce the numerical aperture (NA) of the optical system. When used to emit astigmatism, the concave side should be oriented towards the beam to minimize spherical aberration.

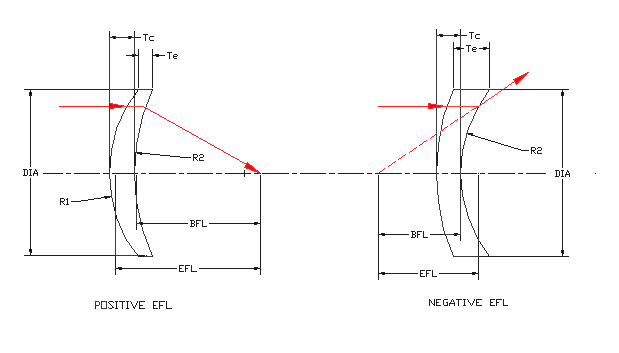

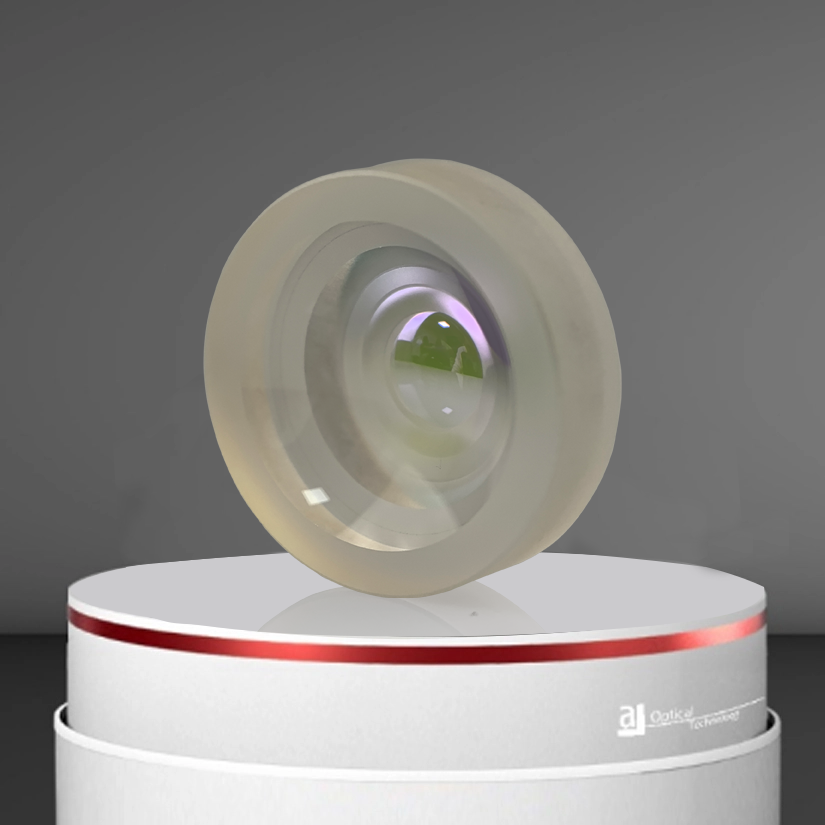

ATOPTIK’s meniscus lens is a high-performance optical component with an asymmetric concave-convex structure. Its unique shape offers excellent performance in reducing aberrations, enhancing beam quality, minimizing spherical aberration, and controlling beam divergence. Meniscus lenses are commonly used in applications such as beam collimation, optical imaging, laser beam expansion, fiber coupling, and sensors.
| Specifications | Normal | High Precision | Mfg. Limit |
| Material : | Optical glass | Optical glass | Optical glass |
| Diameter Tolerance : | +0/-0.1mm | +0/-0.05mm | +0/-0.01mm |
| Thickness Tolerance : | +/-0.1mm | +/-0.05mm | +/-0.01mm |
| Focal Length Tolerance : | +/-2% | +/-1% | +/-0.5% |
| Centeration : | 3 arc min | 1 arc min | 10 arc sec |
| Surface Quality : | 60-40 | 40-20 | 10-5 |
| Surface Figure : | 3 Iambda | 2 lambda | 1 lambda |
| Surface Irregularity : | 1/4 lambda | 1/10 lambda | 1/20 Iambda |
| Clear Aperture : | >80% | >90% | 100% |
| Bevel : | +/-0.2*45 degree | +/-0.1*45 degree | +/-0.05*45degree |
